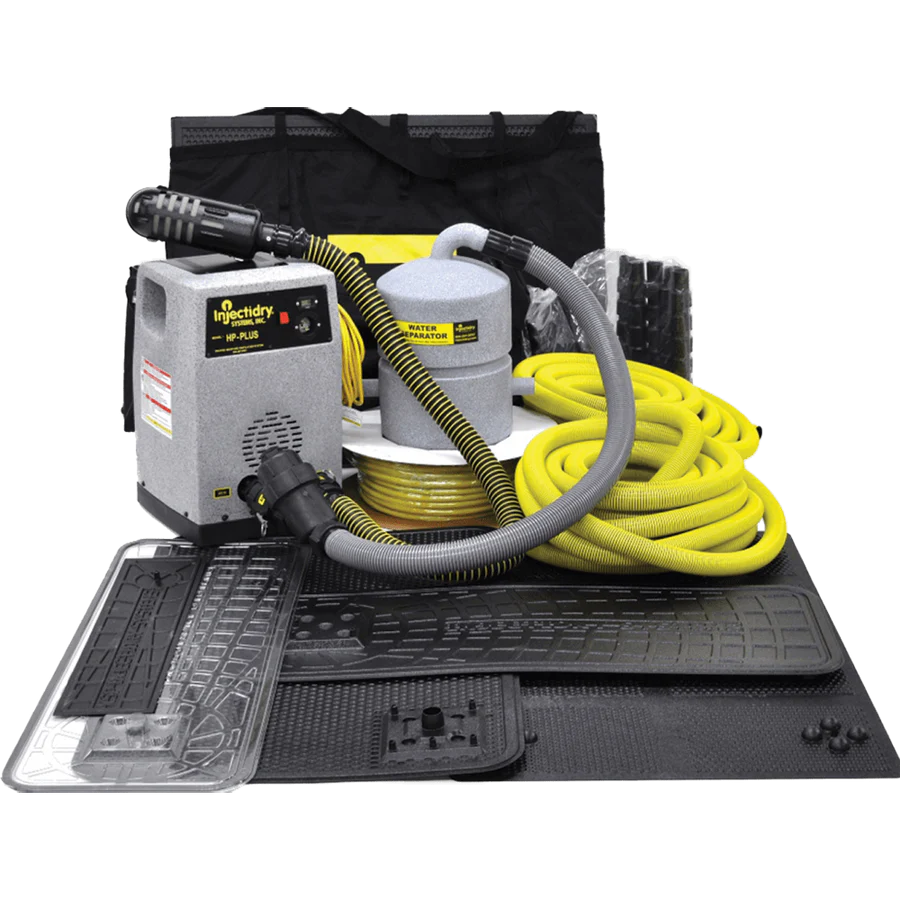

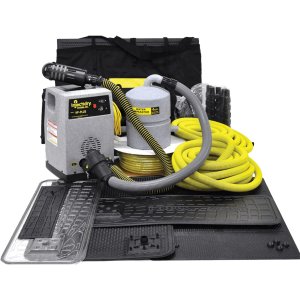

Floor Drying System HP-Plus
Designed for floor drying using the HP-Plus system in the negative mode. The set-up is extremely quick, easy & efficient for your typical floor drying needs. Several decibels quieter than even the quiet HP60, no breaker tripping problems, 20% more efficient,consistent pressure with no need for pressure relief valves.
Purchase accessories to increase your system’s capabilities, such as HEPA filter, water separator, AH-CWK A or B option for ceiling cabinet & wall drying.
The HP-PLUS Package is designed specifically for floor. The set-up is extremely quick, easy and efficient for your typical floor drying needs. Quieter, no breaker tripping on startup, consistent pressure with no need for pressure relief valve. Purchase accessories to increase your system’s capabilities by purchasing Vac-It Panels. Purchase Active Hoses, Manifolds or WCB accessories to dry Wall & Ceilings.
ITEM DESCRIPTION
HP-PLUS Unit 1
Main AIR IN - Quick Connects installed at factory 1 PTFC-PU
Main AIR OUT - Quick Connects installed at factory 1 PTMA-PU
AIR OUT Main Hose - 6’ NO PRV REQUIRED 1 AOMH-PU
AIR IN Main Hose - 6’ Inline Filter NO PRV REQUIRED 1 AIMH-PU
Carry Bag 1 CB3
Rolling Duffle Bag 1 CB2
Safety Yellow Blank Hose 11/2”x50’ 2 PLO3
Quick Connect - Panel T’s (Hosecuffs attached) 7 VAC-T
Quick Connect - 1½” Hosecuff 14 HC3
End Cap Plug 7 QCEPO1
Variety Panel Package: (6) Large Multi Port Panels, (1) 8 Point, (1) Large Clear, & (1) U Panel Kit which
includes (1) U Panel & (3) Small Panels w/ 3/8" Port
1 VACITPA-VP
Roll of Tubing 1 RHO5A
Soft Tubing Stoppers (bag of 40) 1 RP2
Silencer 1 SILENCER
Quick Connect Inline Manifold 6 QCM01
Manual 1
