Compact, Lightweight, Powerful, and Safe

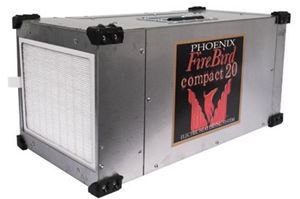

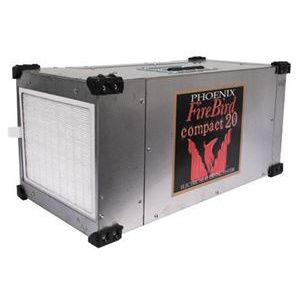

The FireBird Compact 20 portable electric heat drying system features multiple power receptacles for connecting to common 120VAC outlets. The Compact 20 can output up to 20,000 BTUs of clean, safe heat at 250 CFM. The Compact 20’s remote thermostat, which is included with the unit, provides a means to control the temperature in the drying chamber, while its internal temperature cutout ensures safe operation. At maximum heat (four 12-amp circuits at 5,000 BTUs each), the FireBird produces 20,000 BTUs – that’s 250 CFM with a 70°F temperature rise. Internal temperature cutouts prevent the FireBird Compact 20 from overheating an area, while the Compact 20’s remote thermostat kit provides a means to control the heat from anywhere in the drying space.
Like all Phoenix FireBirds, the FireBird Compact 20 offers multiple heating, ducting, and electrical options for on-demand heating from inside or outside the drying space. The FireBird Compact 20 will operate freestanding or with 8-inch flex duct on the inlet and/or outlet to distribute the heat precisely where you need it. The FireBird Compact 20 boasts many of the same features as its larger counterparts: the FireBird and the FireBird Fury. The Compact 20 is fully NEC compliant for continuous operation. It also features a Phoenix Thermostat with 25-foot connecting wire included with the unit. To ensure external surfaces are safe to touch, the heating elements are shielded within a double-walled and screened enclosure. Finally, an automatic pressure switch disables the heating elements if intake or exhaust ducts become blocked or if airflow is cut off for any reason Features Compact size, lightweight design Double-walled, screened enclosure for heating elements Automatic low-airflow shutoff and internal 140ºF safety thermal cutout Phoenix Thermostat with 25’ connecting wire included with the unit Listed by ETL to UL Safety Standards Stainless steel cabinet Stackable for easy storage and transportation.
For large quantity orders, please call for pricing - 513-874-7478
Specifications
Part No. 4033450
Power 120VAC 60Hz, 1 Phase Heater Circuits (up to 4):
12 Amp / circuit = 17°F temperature rise/circut:
5,000 BTU
At Maximum Heat:
20,000 BTU with 70°F Temperature Rise at
250CFM
Blower 250 CFM
Filters Mini Pleated Media MERV-11
Duct Options Intake – 8” Flex-Duct
Supply – 8” Flex-Duct
Warranty One year 100% of Parts and Labor
Dimensions
Machine Shipping
Width 13’ 17”
Height 12.5” 17”
Depth 26” 30”
Weight 35 lb 42 lb
Popular Accessories And Replacement Filters
4033895 Duct Kit, Compact Heater, 8” inlet (no flex Duct)
4027415 8” x 25’ Flex Duct
4032773 Cord Kit, (2) 25’ Lighted Cords &
(2) 50’ Lighted Cords
4030671 9” x 11 3/8 x ¾” Mini-Pleated MERV-11 Filter
4030733 Filter Package, 12 PK; 9” x 11 3/8 x ¾”
Mini-Pleated MERV-11 Filter
4030115 Reed LM 8000 Multi-Function Meter
4027327 Phoenix Remote Thermostat Kit
